SchemeExt:Entity:dist
From DocR23
| ||
Contents |
Action
Gets the minimum distance between two entitys or an entity and a position.
Filename
scm/scmext/intr/ilaw_scm.cpp
APIs
api_entity_entity_distance, api_entity_point_distance
Syntax
(entity:dist part1 part2 [acis-opts])
Argument Types
| Argument | Scheme Data Type |
|---|---|
| part1 | entity | position |
| part2 | entity | position |
| acis-opts | acis-options |
Returns
(real position_1 parameter_1 entity_1 string_1 position_2 parameter_2 entity_2 string_2 )
Description
Using the two input entities, this finds a position on each entity such that the distance between the two is the minimum distance. Supported entities include vertex, edge, loop, face, wire, shell, lump and body. The command can also find the minimum distance using an entity and a position, or a position and an entity.
The output of entity:dist has the form
real : Minimum distance value position_1 : position on part_1 position_2 : position on part_2 parameter_1: is zero, when entity_1 is a vertex is real, when entity_1 is an edge is par-pos, when entity_1 is a face parameter_2: is zero, when entity_2 is a vertex is real, when entity_2 is an edge is par-pos, when entity_2 is a face entity_1 : entity of part1 closest to part2 entity_2 : entity of part2 closest to part1 string_1 : String denoting the type of closest entity of part1, for example, "VERTEX", "EDGE", or "FACE" string_2 : String denoting the type of closest entity of part2, for example, "VERTEX", "EDGE", or "FACE"
Note: The position and the entity information returned in the output are not guaranteed to be unique.
Limitations
If part1 is defined as a position, part2 must be an entity.
Arguments
- part1 specifies an entity or position.
- part2 specifies an entity or position.
- acis-opts enables journaling and versioning options.
Example

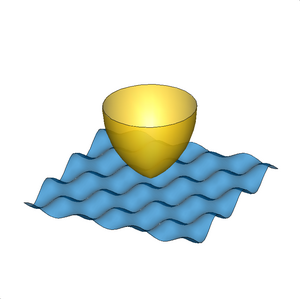

; entity:dist ; Create a law surface and lemon torus. (define c1 (face:law "vec (x,y,sin (x)*cos (y))" -10 10 -10 10)) ;; c1 (define c2 (face:torus (position 0 0 9.5) -5 10 0 360 0 360 (gvector 0 0 -1))) ;; c2 ; Get minimum distance between faces (entity:dist c1 c2) ;; (0.524346640596345 ;; #[ position 0.840486691606062 4.14129658535988e-018 0.744967880321401 ] ;; #[ par-pos 0.840486691606062 4.14129658535988e-018 ] ;; #[entity 1 1] ;; "FACE" ;; #[ position 0.549500560406595 6.72921877702874e-017 1.18116333072665 ] ;; #[ par-pos 0.982493399052537 3.14159265358979 ] ;; #[entity 2 1] ;; "FACE")
 |
