Action

Finds the shortest edge from given list of entities.

Filename

scm/scmext/covr/wire_heal_scm.cpp

APIs

api_get_edges

Syntax

(edge:shortest entity-list)

Argument Types

Argument	Scheme Data Type
entity-list	entity | (entity ...)

Returns

edge | (edge ...)

Description

This extension creates a list of edges that is a union of the edges belonging to the input entities and then finds the shortest edge. The shortest edge is returned and its length is printed out.

Arguments

• entity-list specifies a single entity or list of entities whose edges are to be considered.

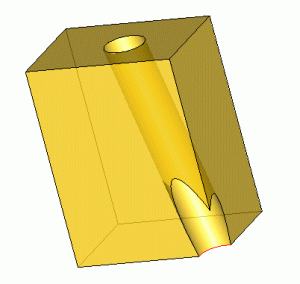

Example

(part:clear)
(define body1 (solid:block (position 0 0 0) (position 10 15 20)))
(define c1 (solid:cylinder (position 0 0 -1) (position 5 7 21) 2))
(bool:subtract body1 c1)
(define shortest (edge:shortest body1))
;shortest edge: 3.879122
(entity:set-color shortest RED)
