Monolithic ACIS assembly is supported. Monolithic refers to a single file holding all the data required to define the assembly. Refer to ACIS Assembly for more information.

InterOp ACIS Writer supports the following file formats and versions:

File Format File Extension Version Supported
ASAT .asat ACIS R19 onwards
ASAB .asab ACIS R19 onwards

The following options are required for reading/writing monolithic ASAT files

Contents

Required DLLs

To support translation of ACIS assembly data, ensure that the following libraries (DLLs) are available in the InterOp and ACIS base directories:

InterOp:

  • SPAXACISASSEMBLYIMPORTER.DLL
  • SPAXACISBASE.DLL
  • SPAXACISKERNEL.DLL
  • SPAXASSEMBLYREP.DLL
  • SPAXBASE.DLL
  • SPAXINTEROP.DLL

ACIS:

  • SPAACIS.DLL

Refer to Translating from ACIS Assembly Models for an AcisAsmExport sample.

Refer to Translating to ACIS Assembly Models for an AcisAsmImport sample.

Assembly PMI Annotations

InterOp supports the import of PMI annotations created at the assembly level in source assembly files. It is supported only in ASAT or ASAB route (and not in XML E-BOM and flatten route). This uses the same ACIS PMI data structures as in Part PMIs. However, instead of ENTITY as owner of PMI, we have component_entity_handle as owner of PMI. component_entity_handle is a part entity defined in context of an assembly model. Refer Handles in Assembly Modeling and the component_entity_handle class documentation for more details on its use.

Also note that assembly PMI annotations attached onto workplanes or axis systems (local coordinate systems) of parts are not supported. Set the option Representation to Assembly+PMI to import assembly PMI annotations.

Assembly Part Level PMI Annotations

Part level PMI Annotations are supported only in an XML E-BOM route. PMI Annotations in the part files of an assembly are translated to the corresponding ACIS SAT files created for each instance in an E-BOM route. However, in a Flatten route, part-level PMI annotations of an assembly are not translated.

Assembly Cut Features to ACIS

InterOp supports translation of the assembly cut features from Pro/E. Translation of assembly cut features is implemented in two ways:

  • Assembly Route to XML E-BOM (output as XML+SAT)
  • Flatten Route to ACIS (output as list of entities)

The above methods are explained in detail below in XML Route (EBOM) and Flatten Route.

XML Route (EBOM)

The XML route involves creating a separate SAT file for each assembly cut features.

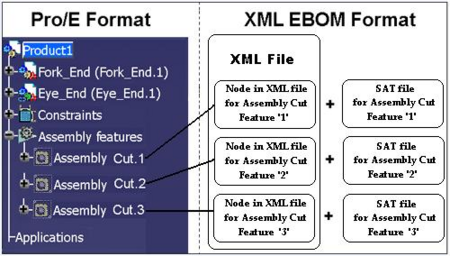

Diagrammatic Representation of Assembly Cut Translation Using XML Route

The main features of translating an assembly cut features using an XML route are:

  • A separate SAT file is created for each assembly cut features.
  • Each SAT file contains tool body (BODY) and hole group (SPAGROUP) information if the cut feature is a Hole or Pattern feature.
  • An additional node, named "SPACutsubassy name" is added at each corresponding subassembly level in the XML file for a cut feature in the source Pro/E subassembly file.
  • In addition to the positioning and reference link, the SPACut# node contains a list of affected assembly instances under a new tag AffectedChildren.

The following sample code shows implementation of XML route translation for assembly cut features:

<Child Name="SPACut1_SubName" Identifier="Id_SPACut1_SubName">
<Position>
<V1>-1.000000000000000</V1>
...
<T3>700.080000000000040</T3>
</Position>
<RefLink Id="RefIdSPACut1_SubName" />
<AffectedChildren>
<Child Id="pem_nut_10-1"/>
<Child Id="Instance 02"/>
<Child Id="Instance 05"/>
</AffectedChildren>
</Child>

Flatten Route

The flatten route method involves translating the assembly cut features from Pro/E as a SPACOLLECTION entity in ACIS. Each SPACOLLECTION entity has a generic attribute (type ATTRIB_GEN_INTEGER) attached to it. The value of this attribute indicates whether the SPACOLLECTION entity is created from an assembly cut features or not. The name of the attribute attached to a SPACOLLECTION entity is ATTRIB_XACIS_GROUP_TYPE. The value of this attribute is 4 for a SPACOLLECTION entity created from an assembly cut features. The following diagram shows translation of a Pro/E file containing three assembly cut features to ACIS:

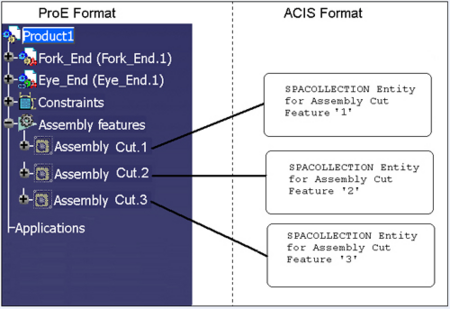

IOP flatten route.png

The members of a SPACOLLECTION entity are:

  • A tool BODY with attached SPAATTRIB_ASSY_CUT_TOOL attribute (type ATTRIB_GEN_INTEGER). The value of this attribute is true, which indicates that the body is a tool body.
  • Bodies that will be intersected for assembly cut.
  • SPAGROUP representing a hole feature/pattern if the cut feature represents a hole/pattern feature and the Manufacturing representation is set.

The following sample application can be used for assembly-level cut operations.

Limitations

The support for assembly cut features has the following limitations (in both E-BOM and flatten route):

  • When a part file contains multiple bodies and an assembly cut is defined on only some of the bodies (even though the tool body is long enough to intersect with many bodies), InterOp does not specify exactly which bodies are affected. Instead, InterOp will specify that all bodies are affected by that cut.
  • When any sub-assembly is instantiated more than once in a parent assembly, InterOp does not specify exactly which children were affected due to an assembly cut that occurs in the following situations:
    • The assembly cut is defined on only some of the instances of that sub-assembly.
    • Different assembly cuts are defined on different instances of the sub-assembly.

Hole and Pattern Attributes




The various properties of Holes and Patterns are attached as attributes to the SPAGROUP entity in ACIS. The following table lists the Hole feature attributes attached to the SPAGROUP entity:

Attribute Name Attribute Type Hole Information
ATTRIB_XACIS_GROUP_TYPE Integer

-1 – undefined type

0 – layer entity

1 – layer filter entity

2 – selection set entity

3 – hole feature

4 – entity created from an assembly cut features

5 – entity created for parameters

6 – entity created to hold all Driving Dimensions as its members

7 – entity created to hold all Material Properties

8 – entity created to hold all Document level Properties (currently document level material properties and validation properties are held)

Group type
SPAATTRIB_MFGTYPE Integer (-1 to 6)

-1 – Unknown

0 – Simple hole

1 – Tapered

2 – Counter Bore

3 – Counter Sink

4 – Counter drilled

5 – Rectangular Pattern Feature

6 – Circular Pattern Feature

Hole type
SPAATTRIB_HLDIA Double Primary hole diameter
SPAATTRIB_HLDIAMXTL Double Primary diameter maximum tolerance
SPAATTRIB_HLDIAMNTL Double Primary diameter minimum tolerance
SPAATTRIB_HLDPTH Double Hole depth
SPAATTRIB_HLTIPANG Double (in radians) Hole tip angle
SPAATTRIB_HLDIR SPAvector Hole direction
SPAATTRIB_HLTAPANG Double (in radians) Taper hole angle
SPAATTRIB_HLCBDIA Double Counter bore diameter
SPAATTRIB_HLCBDIAMXTL Double Counter bore diameter maximum tolerance
SPAATTRIB_HLCBDIAMNTL Double Counter bore diameter minimum tolerance
SPAATTRIB_HLCBDPTH Double Counter bore depth
SPAATTRIB_HLCSDIA Double Counter sink diameter
SPAATTRIB_HLCSDIAMXTL Double Counter sink diameter maximum tolerance
SPAATTRIB_HLCSDIAMNTL Double Counter diameter minimum tolerance
SPAATTRIB_HLCSTAPANG Double Counter sink taper angle
SPAATTRIB_HASTHREAD Bool Whether the hole is threaded. True, if hole is threaded.
SPAATTRIB_HLTHRDTYPE String Hole thread type, specifies name of the thread type
SPAATTRIB_HLTHRDDIA Double Hole thread diameter
SPAATTRIB_HLTHRDPTCH Double Hole thread pitch
SPAATTRIB_HLTHRDDPTH Double Hole thread depth
SPAATTRIB_HLTHRDMXTL Double Hole thread maximum tolerance
SPAATTRIB_HLTHRDMNTL Double Hole thread minimum tolerance
SPAATTRIB_HLTHRDDIR Bool Hole thread direction. True indicates Right Handed else Left Handed
SPAATTRIB_HLCDDIA1 Double Counter drilled hole diameter1
SPAATTRIB_HLCDDIA2 Double Counter drilled hole diameter2
SPAATTRIB_HLCDDIAMXTL Double Counter drilled diameter maximum tolerance
SPAATTRIB_HLCDDIAMNTL Double Counter drilled diameter minimum tolerance
SPAATTRIB_HLCDDPTH Double Counter drilled hole depth
SPAATTRIB_HLCDTAPANG Double Counter drilled hole taper angle
SPAATTRIB_HLPOS SPAposition Center position of the hole

Note: In addition to the above list of attributes for Hole, a generic attribute of type int, named SPAATTRIB_HLTOPFACE, is attached to the top face of the hole.

The following table lists the Pattern attributes attached to the SPAGROUP entity:

Attribute Name Attribute Type Pattern Information
SPAATTRIB_PATRTHL SPAGROUP Base hole in a pattern feature (both for circular and rectangular pattern)
SPAATTRIB_PATANCHPT SPAposition Anchor position of root hole in a pattern (both for circular and rectangular pattern)
SPAATTRIB_PATFDIRPOS int Original position of base hole in first direction in a pattern (both for circular and rectangular pattern)
SPAATTRIB_PATSDIRPOS int Original position of base hole in second direction in a pattern (both for circular and rectangular pattern)
SPAATTRIB_PATFDIRCNT int Number of duplications in first direction in a pattern (both for circular and rectangular pattern)
SPAATTRIB_PATSDIRCNT int Number of duplications in second direction in a pattern (both for circular and rectangular pattern)
SPAATTRIB_PATFDIRSTP double Step between two consecutive duplications in first direction in a pattern (both for circular and rectangular pattern)
SPAATTRIB_PATSDIRSTP double Step between two consecutive duplications in second direction in a pattern
SPAATTRIB_RECPATFDIR SPAvector First direction in a rectangular pattern (Not applicable for circular pattern)
SPAATTRIB_RECPATSDIR SPAvector Second direction in a rectangular pattern (Not applicable for circular pattern)
SPAATTRIB_CIRPATCENOFROT SPAposition Center of rotation of circular pattern (Not applicable for rectangular pattern)
SPAATTRIB_CIRPATAXSOFROT SPAvector Axis of rotation of circular pattern (Not applicable for rectangular pattern)
SPAATTRIB_CIRPATINSTROT logical Circular pattern instance rotation flag, if it is True, duplication keep the same orientation. (Not applicable for rectangular pattern)
ATTRIB_XACIS_GROUP_TYPE Integer, value of 3 indicates hole feature. Group Type
SPAATTRIB_MFGTYPE Integer Pattern Type, value of 5 indicates Rectangular Pattern Feature, value of 6 indicates Circular Pattern Feature

You can query the SPACOLLECTION entity for information and perform a Boolean operation to obtain the cut feature where the tool body is used as a tool and the affected flatten list of entities are treated as targets.




Free Parts Translation in ASAT Write

ACIS assembly supports top-level entities at assembly node (asm_model). Hence, ASAT Writer generates an ASAT file containing Free Parts at the root node as top-level entities.

In ACIS assembly, Free Parts as top-level entities can be:

Note: Free parts are handled only at the top-level node of the source assembly; free parts in subassembly nodes are ignored.


Assembly Limitations

The following features are not supported by ACIS assembly (ASAT/ASAB):

  • Atomic assemblies
  • Layer/Layer Filter
  • Color at instance levels
  • Suppress/Hidden
  • Cut/Hole
  • PMI
  • Hybrid assemblies
  • Unit at instance level and Free Parts
  • ACIS assembly (ASAT) does not support transformation with a reflection (or mirror). In this case, InterOp will copy the instance having a mirror transformation and then apply the transformation on that copied node. Then, this node will be instantiated (created) with unit transformation.
