Imprint

From DocR21

An imprint is a Boolean operation that computes the intersection graph of the tool body and the blank body and embeds it into both bodies, splitting faces and edges of the original two bodies with the edges of the intersection graph. The edges and vertices of the intersection graph are added to both bodies wherever edges and vertices do not already exist. If a closed loop of edges is created, a new face is made. An open loop of edges can be added as a spur to an existing loop on a face or as a slit in the face.

Uses of Imprint

Some of the uses for imprinting include:

• Creating edges on a body for subsequent operations, such as sweeping or skinning.
• Visualizing the intersection of two bodies without actually performing a Boolean operation.
• Debugging a Boolean operation.

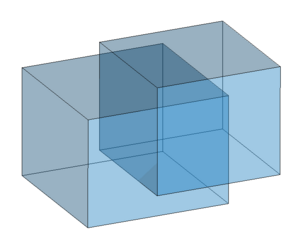

Two Original Bodies

Result of Operation: Two Imprinted Bodies

Interface

C++	Scheme	Description
api_imprint	solid:imprint	Intersects two bodies and imprints the intersection graph on both bodies.
BoolOptions	Bool_Options	Specifies BoolOptions class and Scheme data type.
BoolOptions	bool:options	Constructs BoolOptions class and Scheme data type.
BoolOptions::get_imprinted_entities	bool-options:get-imprinted-entities	Returns the list of the imprinted entities on one of the bodies.
BoolOptions::get_associated_entities	bool-options:get-associated-entities	Returns the list of entities associated with a given entity for an imprinting operation.
